OVERVIEW

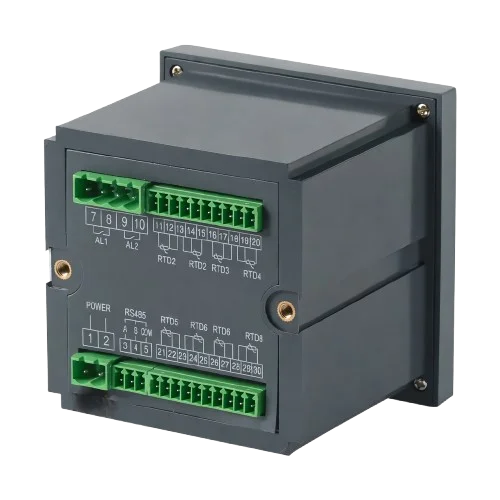

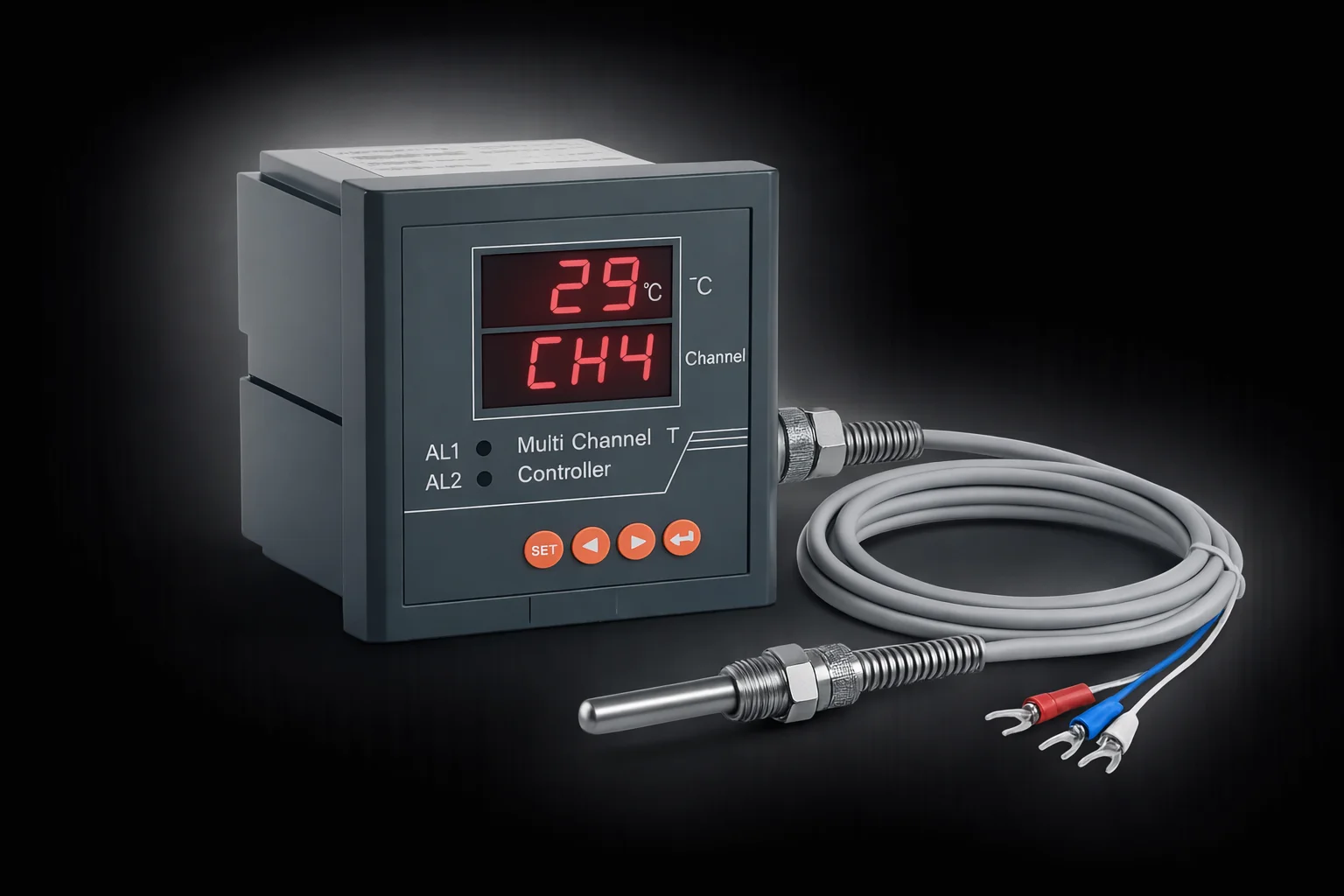

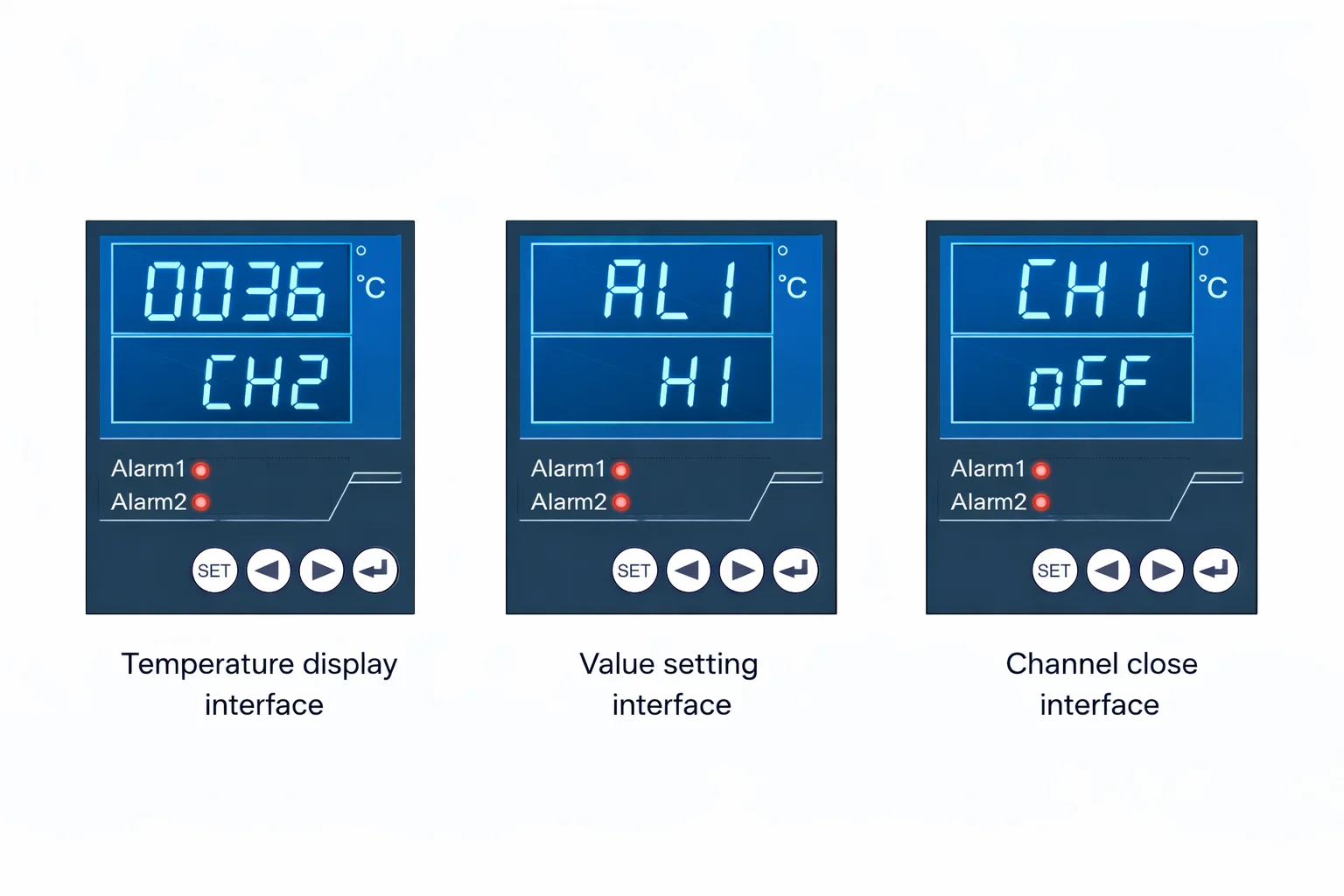

The Temp-8 PT100 Temperature Monitor for cabinets offers precise temperature management with support for up to eight PT100 sensor inputs. It features two configurable alarm relays to ensure safety and timely alerts, while the clear LED display allows for easy monitoring of conditions. The device is versatile in power compatibility, operating with AC 220V, DC 220V, or DC 110V, and it also includes an RS485 serial interface with Modbus-RTU protocol for seamless integration with industrial communication systems.
MAIN PARAMETERS
| Sensor Input |
Thermal resistance: PT100 |
| Measurement Accuracy |
0.5S |
| Alarm Output |
2 normally open relays, rated AC 250V/5A, DC 30V/5A |
| Auxiliary Power Supply |
AC 85–265V, DC 100–350V |
| Power Consumption |
≤ 2W |
| Relay Capacity |
AC 250V/5A, DC 30V/5A |
| Communication Baud Rate |
1200, 2400, 4800, 9600, 19200 bps |
| Electrical Isolation |
2kV for 1 minute (AC effective value) |
| Communication Protocol |
RS485 with MODBUS-RTU |
| Panel Cut-out Size |
88 × 88 mm |
